定倍镜头,同轴光镜头
同轴光定倍镜头可以有非同轴光的规格，但非同轴光的不一定能做成同轴光的方式。 |
| 同轴光镜头 |
非同轴光镜头 |
同轴光镜头26 |
其它类镜头 |
 |
 |
 |
 |
|

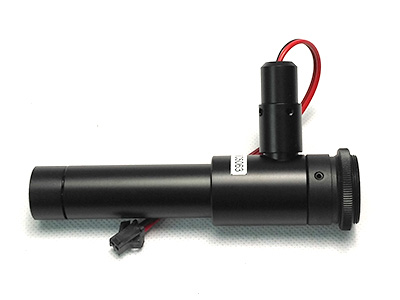

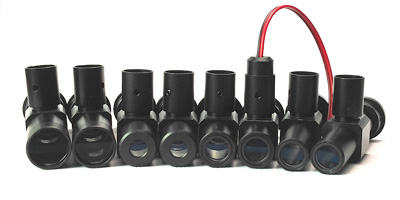

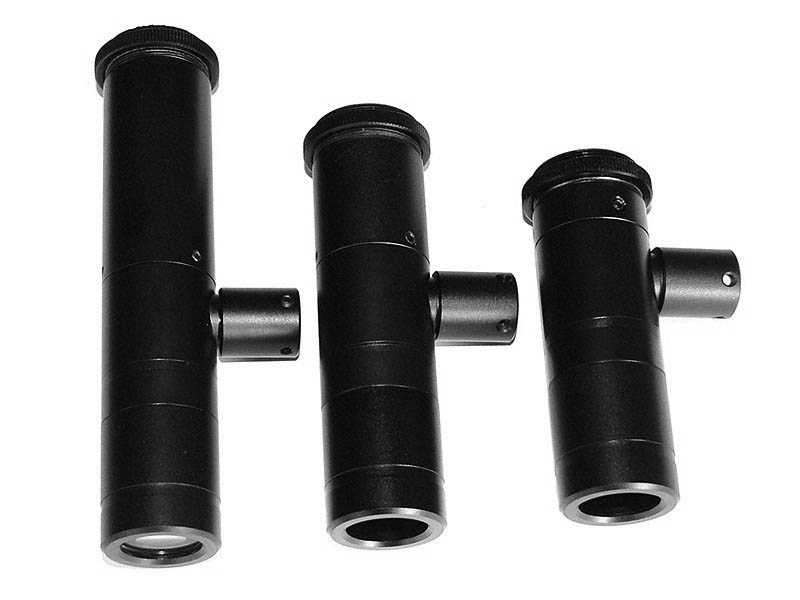

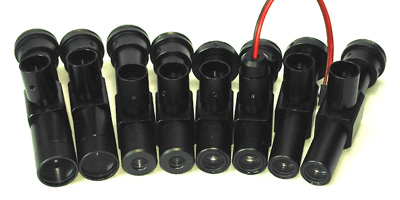

I型同轴光，直型同轴光镜头，普通同轴光镜头:适用相机1/4'至2/3'
1.普通同轴光镜头与远心的区别在于非远心设计，但在低倍时为达到照明均匀，其孔径必须大于所观察物体最大尺寸，
2.普通同轴光镜头其倍率比较大，目前提供放大率大于0.5X，所设计镜片孔径比较小。大部份镜头可以同时提供同轴光与非同轴规格。
3.CCD标准接口,适用CCD尺寸:2/3',1/1.8',1/2',1/3',1/4',1/6'，最大支持芯片尺寸祥见下表;
4.镜头头部外径16，18，20安装外径为16或18；头部外径22，26的安装外径为22mm;
5.同轴光照明,附送普通LED同轴照明灯源（不含3V20mA电源)，有内部8mm,10mm,14mm的光源接口，或可选8mm光纤转接口;
6.可以按用户要求定制其它倍率及工作距的镜头。

产品列表说明：
产品按放大率从小到大排列，相同放大率按工作距从小到大排列。
外形图在最后一列，图中WD表示工作距。型号中I表示直型，接着是放大率，X后面是工作距，
C表示同轴照明，最后面加数字表示头部外径或安装外径。最右边是图纸链接。
|
!--4产品列表--
’
| 型号 |
倍数 |
工作距 |
景深 |
数值孔径 |
分辨率 |
孔径F# |
畸变% |
镜身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
最大接收器 |
非同轴光型号/外形图下载 |
I0.3X90C26 |
0.30 |
90 |
4.94 |
0.027 |
0.012 |
5.6 |
0.48 |
89.2 |
41.0 |
17.2 |
26 |
22 |
C |
1/3' |
I0.3X90C26 |
I0.5X105C20 |
0.47 |
105 |
4.05 |
0.021 |
0.016 |
11.2 |
0.84 |
111.1 |
36.6 |
34.5 |
20 |
16/18 |
C |
1/2' |
I0.5X105C20 |
I0.5X110C20 |
0.50 |
108 |
2.50 |
0.032 |
0.010 |
7.8 |
0.09 |
96.6 |
37.1 |
19.5 |
20 |
18 |
C |
1/2' |
I0.5X110C20 |
J0.5X110C16 |
0.50 |
110 |
2.67 |
0.030 |
0.011 |
8.3 |
0.84 |
74.9 |
21.5 |
22.4 |
16/18 |
16 |
C |
1/3' |
J0.5X110C16 |
J0.5X110C16 |
0.50 |
110 |
2.67 |
0.030 |
0.011 |
8.3 |
0.84 |
74.9 |
21.5 |
22.4 |
16/18 |
16 |
C |
1/3' |
J0.5X110C16 |
I0.5X135C20 |
0.50 |
135 |
1.60 |
0.050 |
0.007 |
5.0 |
0.05 |
86.1 |
37.1 |
9.0 |
20 |
18 |
C |
1/2' |
I0.5X135C20 |
I0.5X150C20 |
0.50 |
150 |
1.78 |
0.045 |
0.007 |
5.6 |
0.10 |
138.6 |
36.6 |
62.0 |
20 |
16/18 |
C |
1/2' |
I0.5X150C20 |
I0.5X200C20 |
0.50 |
200 |
2.50 |
0.032 |
0.010 |
7.8 |
0.15 |
132.2 |
36.6 |
55.6 |
20 |
18 |
C |
1/3' |
I0.5X200C20 |
I0.5X210C20 |
0.50 |
210 |
2.50 |
0.032 |
0.010 |
7.8 |
0.15 |
132.2 |
36.6 |
55.6 |
20 |
18 |
C |
1/3' |
I0.5X210C20 |
I0.5X258C20 |
0.50 |
258 |
2.96 |
0.027 |
0.012 |
9.3 |
0.30 |
120.4 |
36.6 |
43.8 |
20 |
16/18 |
C |
2/3' |
I0.5X258C20 |
I0.5X350C20 |
0.50 |
350 |
3.81 |
0.021 |
0.016 |
11.9 |
0.26 |
111.1 |
36.6 |
34.5 |
20 |
16/18 |
C |
1/2' |
I0.5X350C20 |
I0.6X110C20 |
0.60 |
110 |
2.22 |
0.030 |
0.011 |
10.0 |
0.30 |
96.6 |
37.1 |
19.5 |
20 |
18 |
C |
1/2' |
I0.6X110C20 |
I0.6X300C20 |
0.60 |
300 |
4.17 |
0.016 |
0.021 |
18.8 |
0.29 |
120.4 |
36.6 |
43.8 |
20 |
16/18 |
C |
1/2' |
I0.6X300C20 |
I0.7X210C20 |
0.70 |
210 |
1.79 |
0.032 |
0.010 |
10.9 |
0.08 |
138.6 |
36.6 |
62.0 |
20 |
16/18 |
C |
1/2' |
I0.7X210C20 |
I0.75X250C20 |
0.75 |
250 |
2.13 |
0.025 |
0.013 |
15.0 |
0.30 |
89.4 |
37.1 |
12.3 |
20 |
18 |
C |
1/2' |
I0.75X250C20 |
I0.8X60C18 |
0.80 |
60 |
1.00 |
0.050 |
0.007 |
8.0 |
0.10 |
76.5 |
21.5 |
15.0 |
16/18 |
18 |
C |
1/2.5' |
I0.8X60C18 |
I0.8X115C |
0.80 |
115 |
1.11 |
0.045 |
0.007 |
8.9 |
0.20 |
89.5 |
21.5 |
28.0 |
16/18 |
16/18 |
C |
1/3' |
I0.8X115C |
I0.8X115C |
0.80 |
115 |
1.11 |
0.045 |
0.007 |
8.9 |
0.20 |
89.5 |
21.5 |
28.0 |
16/18 |
16/18 |
C |
1/3' |
I0.8X115C |
I0.8X600C20 |
0.80 |
600 |
3.33 |
0.015 |
0.022 |
26.7 |
0.30 |
138.6 |
36.6 |
62.0 |
20 |
16/18 |
C |
1/2' |
I0.8X600C20 |
I1X60C |
1.00 |
60 |
0.80 |
0.050 |
0.007 |
10.0 |
0.10 |
89.5 |
21.5 |
28.0 |
16/18 |
16/18 |
C |
1/2' |
I1X60C |
J1X60C18 |
1.00 |
60 |
1.00 |
0.040 |
0.008 |
12.5 |
0.38 |
48.1 |
1.1 |
21.0 |
17 |
18 |
C |
1/2' |
J1X60C18 |
I1X62C |
1.00 |
62 |
1.33 |
0.030 |
0.011 |
16.7 |
0.30 |
46.5 |
6.5 |
0.0 |
16 |
16 |
C |
1/2' |
I1X62C |
I1X68C |
1.00 |
68 |
0.80 |
0.050 |
0.007 |
10.0 |
0.01 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1X68C |
I1X68C20 |
1.00 |
68 |
0.80 |
0.050 |
0.007 |
10.0 |
0.33 |
111.6 |
37.1 |
34.5 |
20 |
16/18 |
C |
1/2' |
I1X68C20 |
I1X90C18 |
1.00 |
89 |
0.80 |
0.050 |
0.007 |
10.0 |
0.01 |
81.0 |
21.5 |
19.5 |
16/18 |
18 |
C |
1/2' |
I1X90C18 |
I1X108C |
1.00 |
109 |
1.08 |
0.037 |
0.009 |
13.5 |
0.01 |
96.0 |
21.5 |
34.5 |
16/18 |
16/18 |
C |
1/2' |
I1X108C |
I1X135C |
1.00 |
135 |
1.35 |
0.030 |
0.011 |
16.9 |
0.33 |
74.5 |
6.5 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1X135C |
I1X140C |
1.00 |
140 |
1.40 |
0.029 |
0.012 |
17.5 |
0.37 |
84.9 |
1.1 |
43.8 |
17 |
16/18 |
C |
1/2' |
I1X140C |
I1X150C20 |
1.00 |
150 |
0.98 |
0.041 |
0.008 |
12.2 |
0.57 |
96.6 |
37.1 |
19.5 |
20 |
18 |
C |
1/2' |
I1X150C20 |
I1X150C |
1.00 |
150 |
1.50 |
0.027 |
0.013 |
18.8 |
0.33 |
89.5 |
21.5 |
28.0 |
16/18 |
16/18 |
C |
1/2' |
I1X150C |
I1X180C |
1.00 |
180 |
1.48 |
0.027 |
0.012 |
18.5 |
0.46 |
89.5 |
21.5 |
28.0 |
16/18 |
16/18 |
C |
1/2.3' |
I1X180C |
I1X188C |
1.00 |
189 |
1.89 |
0.021 |
0.016 |
23.6 |
0.21 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1X188C |
I1X200C |
1.00 |
200 |
2.00 |
0.020 |
0.017 |
25.0 |
0.18 |
89.5 |
21.5 |
28.0 |
16/18 |
16/18 |
C |
1/2' |
I1X200C |
I1X215C |
1.00 |
215 |
1.60 |
0.025 |
0.013 |
20.0 |
0.14 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1X215C |
型号 |
倍数 |
工作距 |
景深 |
数值孔径 |
分辨率 |
孔径F# |
畸变% |
镜身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
最大接收器 |
非同轴光型号/外形图下载 |
I1X225C |
1.00 |
225 |
2.22 |
0.018 |
0.019 |
27.8 |
0.14 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1X225C |
I1X250C |
1.00 |
250 |
2.50 |
0.016 |
0.021 |
31.3 |
0.11 |
105.3 |
21.5 |
43.8 |
16/18 |
16/18 |
C |
1/2' |
I1X250C |
I1X285C |
1.00 |
285 |
2.11 |
0.019 |
0.018 |
26.3 |
0.05 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1X285C |
I1X300C20 |
1.00 |
300 |
2.50 |
0.016 |
0.021 |
31.3 |
0.25 |
132.2 |
36.6 |
55.6 |
20 |
18 |
C |
1/2' |
I1X300C20 |
I1X400C20 |
1.00 |
400 |
2.00 |
0.020 |
0.017 |
25.0 |
0.10 |
132.2 |
36.6 |
55.6 |
20 |
18 |
C |
1/2' |
I1X400C20 |
I1X500C20 |
1.00 |
500 |
2.22 |
0.018 |
0.019 |
27.8 |
0.40 |
138.6 |
36.6 |
62.0 |
20 |
16/18 |
C |
1/2' |
I1X500C20 |
I1X105C |
1.10 |
103 |
0.94 |
0.039 |
0.009 |
14.2 |
0.01 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1X105C |
I1.2X50C |
1.18 |
70 |
0.68 |
0.050 |
0.007 |
11.8 |
0.03 |
96.0 |
21.5 |
34.5 |
16/18 |
16/18 |
C |
1/2' |
I1.2X50C |
I1.2X65C16 |
1.20 |
65 |
0.85 |
0.039 |
0.009 |
15.4 |
0.14 |
106.4 |
22.6 |
43.8 |
16 |
16 |
C |
1/2' |
I1.2X65C16 |
I1.2X68C |
1.20 |
68 |
0.71 |
0.047 |
0.007 |
12.8 |
0.01 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.2X68C |
I1.2X70C |
1.20 |
70 |
0.71 |
0.047 |
0.007 |
12.8 |
0.01 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.2X70C |
I1.2X100C |
1.20 |
100 |
0.83 |
0.040 |
0.008 |
15.0 |
0.01 |
105.3 |
21.5 |
43.8 |
16/18 |
16/18 |
C |
1/2' |
I1.2X100C |
I1.2X110C |
1.20 |
110 |
0.95 |
0.035 |
0.010 |
17.0 |
0.01 |
123.5 |
21.5 |
62.0 |
16/18 |
16/18 |
C |
1/2' |
I1.2X110C |
I1.2X120C |
1.20 |
120 |
1.08 |
0.031 |
0.011 |
19.4 |
0.19 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.2X120C |
I1.2X170C |
1.20 |
170 |
1.23 |
0.027 |
0.012 |
22.2 |
0.14 |
89.5 |
21.5 |
28.0 |
16/18 |
16/18 |
C |
1/2' |
I1.2X170C |
I1.2X175C |
1.20 |
175 |
1.23 |
0.027 |
0.012 |
22.2 |
0.14 |
117.8 |
34.0 |
43.8 |
16 |
16/18 |
C |
1/2' |
I1.2X175C |
I1.2X200C |
1.20 |
200 |
1.52 |
0.022 |
0.015 |
27.3 |
0.03 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.2X200C |
I1.2X250C |
1.20 |
250 |
1.59 |
0.021 |
0.016 |
28.6 |
0.05 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.2X250C |
I1.2X300C26 |
1.20 |
300 |
1.33 |
0.025 |
0.013 |
24.0 |
0.70 |
135.5 |
41.0 |
63.5 |
26 |
22 |
C |
1' |
I1.2X300C26 |
I1.25X150C |
1.25 |
150 |
1.07 |
0.030 |
0.011 |
20.8 |
0.10 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.25X150C |
I1.3X238C |
1.32 |
238 |
1.78 |
0.017 |
0.020 |
38.8 |
0.05 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.3X238C |
I1.3X190C |
1.33 |
190 |
2.01 |
0.015 |
0.022 |
44.3 |
0.25 |
105.3 |
21.5 |
43.8 |
16/18 |
16/18 |
C |
1/2' |
I1.3X190C |
I1.4X52C18 |
1.37 |
52 |
0.61 |
0.048 |
0.014 |
14.3 |
0.30 |
58.8 |
6.5 |
12.3 |
16 |
18 |
C |
1/2' |
I1.4X52C18 |
I1.4X52C18 |
1.37 |
52 |
0.61 |
0.048 |
0.014 |
14.3 |
0.30 |
58.8 |
6.5 |
12.3 |
16 |
18 |
C |
1/2' |
I1.4X52C18 |
I1.4X230C |
1.37 |
52 |
1.72 |
0.017 |
0.039 |
40.3 |
0.05 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.4X230C |
I1.5X250C |
1.45 |
250 |
1.72 |
0.016 |
0.021 |
45.3 |
0.04 |
108.5 |
6.5 |
62.0 |
16 |
16/18 |
C |
1/2' |
I1.5X250C |
I1.5X220C |
1.46 |
220 |
1.52 |
0.018 |
0.019 |
40.6 |
0.06 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.5X220C |
I1.5X60C18 |
1.50 |
60 |
0.67 |
0.040 |
0.017 |
18.8 |
0.36 |
61.5 |
6.5 |
15.0 |
16 |
18 |
C |
1/2' |
I1.5X60C18 |
J1.5X65C16 |
1.50 |
65 |
0.63 |
0.042 |
0.008 |
17.9 |
0.53 |
52.0 |
6.5 |
14.5 |
16 |
16 |
C |
1/2' |
J1.5X65C16 |
I1.5X68C20 |
1.50 |
68 |
0.44 |
0.060 |
0.011 |
12.5 |
0.26 |
120.9 |
37.1 |
43.8 |
20 |
16/18 |
C |
2/3' |
I1.5X68C20 |
I1.5X75C |
1.50 |
75 |
0.53 |
0.050 |
0.007 |
15.0 |
0.01 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.5X75C |
I1.5X90C |
1.50 |
90 |
0.61 |
0.044 |
0.008 |
17.0 |
0.01 |
123.5 |
21.5 |
62.0 |
16/18 |
16/18 |
C |
1/2' |
I1.5X90C |
I1.5X110C20 |
1.50 |
110 |
0.44 |
0.060 |
0.006 |
12.5 |
0.01 |
120.9 |
37.1 |
43.8 |
20 |
16/18 |
C |
1/2' |
I1.5X110C20 |
I1.5X115C |
1.50 |
115 |
0.76 |
0.035 |
0.010 |
21.4 |
0.36 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.5X115C |
I1.5X135C |
1.50 |
135 |
0.81 |
0.033 |
0.010 |
22.7 |
0.16 |
89.5 |
21.5 |
28.0 |
16/18 |
16/18 |
C |
1/2' |
I1.5X135C |
型号 |
倍数 |
工作距 |
景深 |
数值孔径 |
分辨率 |
孔径F# |
畸变% |
镜身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
最大接收器 |
非同轴光型号/外形图下载 |
I1.5X150C |
1.50 |
150 |
1.03 |
0.026 |
0.013 |
28.8 |
0.16 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.5X150C |
I1.5X155C |
1.50 |
155 |
1.03 |
0.026 |
0.013 |
28.8 |
0.16 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.5X155C |
I1.5X180C20 |
1.50 |
180 |
0.67 |
0.040 |
0.008 |
18.8 |
0.32 |
111.6 |
37.1 |
34.5 |
20 |
16/18 |
C |
1/2' |
I1.5X180C20 |
I1.5X190C |
1.50 |
190 |
1.35 |
0.020 |
0.017 |
37.9 |
0.06 |
96.0 |
21.5 |
34.5 |
16/18 |
16/18 |
C |
1/2' |
I1.5X190C |
I1.5X200C |
1.50 |
200 |
1.48 |
0.018 |
0.019 |
41.7 |
0.06 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.5X200C |
I1.5X210C |
1.50 |
210 |
1.35 |
0.020 |
0.017 |
37.9 |
0.06 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.5X210C |
I1.6X49C18 |
1.58 |
49 |
0.84 |
0.030 |
0.011 |
26.3 |
0.20 |
66.0 |
6.5 |
19.5 |
16 |
18 |
C |
1/2' |
I1.6X49C18 |
I1.6X90C |
1.60 |
90 |
0.78 |
0.032 |
0.010 |
25.0 |
0.45 |
89.5 |
21.5 |
28.0 |
16/18 |
16/18 |
C |
1/2' |
I1.6X90C |
I1.6X170C |
1.60 |
170 |
0.78 |
0.032 |
0.010 |
25.0 |
0.10 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.6X170C |
I1.6X210C |
1.60 |
200 |
1.26 |
0.020 |
0.017 |
40.4 |
0.06 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I1.6X210C |
I1.7X130C |
1.70 |
130 |
0.71 |
0.033 |
0.010 |
25.8 |
0.20 |
117.8 |
34.0 |
43.8 |
16 |
16/18 |
C |
1/2' |
I1.7X130C |
I1.8X71C |
1.80 |
71 |
0.40 |
0.055 |
0.006 |
16.4 |
0.04 |
117.8 |
34.0 |
43.8 |
16 |
16/18 |
C |
1/2' |
I1.8X71C |
I2X27C |
2.00 |
27 |
0.35 |
0.057 |
0.006 |
17.5 |
0.50 |
69.1 |
1.1 |
28.0 |
17 |
16/18 |
C |
1/2' |
I2X27C |
I2X45C |
2.00 |
45 |
0.42 |
0.048 |
0.007 |
20.8 |
0.15 |
81.0 |
6.5 |
34.5 |
16 |
16/18 |
C |
1/2' |
I2X45C |
I2X65C |
2.00 |
65 |
0.29 |
0.069 |
0.005 |
14.5 |
0.20 |
74.5 |
6.5 |
28.0 |
16 |
16/18 |
C |
1/2' |
I2X65C |
I2X65C |
2.00 |
65 |
0.49 |
0.041 |
0.008 |
24.4 |
0.20 |
74.5 |
6.5 |
28.0 |
16 |
16/18 |
C |
1/2' |
I2X65C |
I2X68C |
2.00 |
69 |
0.35 |
0.057 |
0.006 |
17.5 |
0.01 |
132.1 |
21.5 |
70.6 |
16/18 |
18 |
C |
2/3' |
I2X68C |
I2X85C |
2.00 |
85 |
0.43 |
0.047 |
0.007 |
21.3 |
0.35 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
2/3' |
I2X85C |
I2X110C |
2.00 |
110 |
0.50 |
0.040 |
0.008 |
25.0 |
0.17 |
96.0 |
21.5 |
34.5 |
16/18 |
16/18 |
C |
1/2' |
I2X110C |
I2X110C16 |
2.00 |
110 |
0.51 |
0.039 |
0.009 |
25.6 |
0.15 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I2X110C16 |
I2X116C |
2.00 |
116 |
0.59 |
0.034 |
0.010 |
29.4 |
0.20 |
108.5 |
34.0 |
34.5 |
16 |
16/18 |
C |
1/2' |
I2X116C |
I2X118C20 |
2.00 |
118 |
0.40 |
0.050 |
0.007 |
20.0 |
0.50 |
120.9 |
37.1 |
43.8 |
20 |
16/18 |
C |
1/2' |
I2X118C20 |
I2X128C |
2.00 |
127 |
0.61 |
0.033 |
0.010 |
30.3 |
0.07 |
89.5 |
21.5 |
28.0 |
16/18 |
16/18 |
C |
1/2' |
I2X128C |
I2X150C20 |
2.00 |
150 |
0.49 |
0.041 |
0.008 |
24.4 |
0.43 |
120.9 |
37.1 |
43.8 |
20 |
16/18 |
C |
1/2' |
I2X150C20 |
I2X150C |
2.00 |
150 |
0.71 |
0.028 |
0.012 |
35.7 |
0.08 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I2X150C |
I2X172C |
2.00 |
172 |
0.87 |
0.023 |
0.015 |
43.5 |
0.05 |
108.5 |
6.5 |
62.0 |
16 |
16/18 |
C |
1/2' |
I2X172C |
I2X195C |
2.00 |
195 |
1.00 |
0.020 |
0.017 |
50.0 |
0.04 |
117.8 |
34.0 |
43.8 |
16 |
16/18 |
C |
1/2' |
I2X195C |
I2X200C20 |
2.00 |
200 |
0.63 |
0.032 |
0.010 |
31.3 |
0.15 |
156.5 |
36.6 |
79.9 |
20 |
18 |
C |
1/2' |
I2X200C20 |
I2X220C |
2.00 |
220 |
1.11 |
0.018 |
0.019 |
55.6 |
0.03 |
129.6 |
34.0 |
55.6 |
16 |
18 |
C |
1/2' |
I2X220C |
I2X230C20 |
2.00 |
230 |
0.65 |
0.031 |
0.011 |
32.3 |
0.16 |
156.5 |
36.6 |
79.9 |
20 |
18 |
C |
1/2' |
I2X230C20 |
I2X300C20 |
2.00 |
300 |
0.77 |
0.026 |
0.015 |
38.5 |
0.10 |
156.5 |
36.6 |
79.9 |
20 |
18 |
C |
2/3' |
I2X300C20 |
I2.5X65C18 |
2.44 |
65 |
0.27 |
0.060 |
0.011 |
20.3 |
0.42 |
61.5 |
6.5 |
15.0 |
16 |
18 |
C |
1/2' |
I2.5X65C18 |
I2.5X90C |
2.50 |
90 |
0.36 |
0.044 |
0.008 |
28.4 |
0.35 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
2/3' |
I2.5X90C |
I2.5X150C |
2.50 |
150 |
0.47 |
0.034 |
0.010 |
36.8 |
0.03 |
117.1 |
21.5 |
55.6 |
16/18 |
18 |
C |
2/3' |
I2.5X150C |
I2.8X126C |
2.80 |
126 |
0.45 |
0.032 |
0.010 |
43.8 |
0.07 |
108.5 |
34.0 |
34.5 |
16 |
16/18 |
C |
2/3' |
I2.8X126C |
型号 |
倍数 |
工作距 |
景深 |
数值孔径 |
分辨率 |
孔径F# |
畸变% |
镜身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
最大接收器 |
非同轴光型号/外形图下载 |
I3X30C |
3.00 |
30 |
0.13 |
0.100 |
0.003 |
15.0 |
0.01 |
117.8 |
34.0 |
43.8 |
16 |
16/18 |
C |
1/2' |
I3X30C |
J3X65C16 |
3.00 |
65 |
0.44 |
0.030 |
0.011 |
50.0 |
0.84 |
70.1 |
21.5 |
17.6 |
16/18 |
16 |
C |
1/2' |
J3X65C16 |
I3X68C |
3.00 |
68 |
0.22 |
0.060 |
0.006 |
25.0 |
0.10 |
90.3 |
6.5 |
43.8 |
16 |
16/18 |
C |
1/2' |
I3X68C |
I3X88C |
3.00 |
88 |
0.38 |
0.035 |
0.010 |
42.9 |
0.10 |
102.0 |
34.0 |
28.0 |
16 |
16/18 |
C |
1/2' |
I3X88C |
I3X98C |
3.00 |
98 |
0.33 |
0.040 |
0.008 |
37.5 |
0.11 |
117.8 |
34.0 |
43.8 |
16 |
16/18 |
C |
1/2' |
I3X98C |
I3X116C |
3.00 |
116 |
0.39 |
0.034 |
0.010 |
44.1 |
0.05 |
108.5 |
34.0 |
34.5 |
16 |
16/18 |
C |
1/2' |
I3X116C |
I3X140C |
3.00 |
140 |
0.46 |
0.029 |
0.012 |
51.7 |
0.03 |
123.5 |
21.5 |
62.0 |
16/18 |
16/18 |
C |
1/2' |
I3X140C |
I3X150C |
3.00 |
150 |
0.56 |
0.024 |
0.014 |
62.5 |
0.10 |
132.1 |
21.5 |
70.6 |
16/18 |
18 |
C |
1/2' |
I3X150C |
J4X30C16 |
4.00 |
30 |
0.11 |
0.095 |
0.004 |
21.1 |
0.18 |
67.5 |
21.5 |
15.0 |
16 |
16 |
C |
1/2' |
J4X30C16 |
J4X36C16 |
4.00 |
36 |
0.13 |
0.080 |
0.004 |
25.0 |
0.54 |
66.0 |
6.5 |
28.5 |
16 |
16 |
C |
1/2' |
J4X36C16 |
I4X52C |
4.00 |
52 |
0.13 |
0.077 |
0.004 |
26.0 |
0.28 |
90.3 |
6.5 |
43.8 |
16 |
16/18 |
C |
1/2' |
I4X52C |
I4X60C |
4.00 |
60 |
0.15 |
0.066 |
0.005 |
30.3 |
0.10 |
81.0 |
6.5 |
34.5 |
16 |
16/18 |
C |
1/2' |
I4X60C |
I4X64C |
4.00 |
64 |
0.16 |
0.062 |
0.005 |
32.3 |
0.08 |
108.5 |
6.5 |
62.0 |
16 |
16/18 |
C |
1/2' |
I4X64C |
I4X68C |
4.00 |
68 |
0.17 |
0.058 |
0.006 |
34.5 |
0.04 |
90.3 |
6.5 |
43.8 |
16 |
16/18 |
C |
1/2' |
I4X68C |
I4X78C |
4.00 |
78 |
0.14 |
0.070 |
0.005 |
28.6 |
0.44 |
172.1 |
34.0 |
98.1 |
16 |
18 |
C |
2/3' |
I4X78C |
I4X80C |
4.00 |
80 |
0.20 |
0.050 |
0.007 |
40.0 |
0.28 |
123.5 |
21.5 |
62.0 |
16/18 |
16/18 |
C |
2/3' |
I4X80C |
I4X80C |
4.00 |
80 |
0.20 |
0.050 |
0.007 |
40.0 |
0.28 |
123.5 |
21.5 |
62.0 |
16/18 |
16/18 |
C |
2/3' |
I4X80C |
I4X100C |
4.00 |
100 |
0.25 |
0.040 |
0.008 |
50.0 |
0.10 |
117.8 |
34.0 |
43.8 |
16 |
16/18 |
C |
1/2' |
I4X100C |
I4X110C |
4.00 |
110 |
0.30 |
0.033 |
0.010 |
60.6 |
0.04 |
123.5 |
21.5 |
62.0 |
16/18 |
16/18 |
C |
1/2' |
I4X110C |
I4X120C |
4.00 |
120 |
0.27 |
0.037 |
0.009 |
54.1 |
0.10 |
136.0 |
34.0 |
62.0 |
16 |
16/18 |
C |
1/2' |
I4X120C |
I4X150C |
4.00 |
150 |
0.31 |
0.032 |
0.010 |
62.5 |
0.26 |
168.2 |
21.5 |
106.7 |
16/18 |
18 |
C |
1" |
I4X150C |
I5X20C |
5.00 |
20 |
0.08 |
0.100 |
0.003 |
25.0 |
0.06 |
105.3 |
21.5 |
43.8 |
16/18 |
16/18 |
C |
1/2' |
I5X20C |
I5X35C |
5.00 |
35 |
0.09 |
0.090 |
0.004 |
27.8 |
0.01 |
172.1 |
34.0 |
98.1 |
16 |
18 |
C |
1/2' |
I5X35C |
I5X36C |
5.00 |
36 |
0.08 |
0.100 |
0.003 |
25.0 |
0.24 |
117.8 |
34.0 |
43.8 |
16 |
16/18 |
C |
1/2' |
I5X36C |
I5X42C |
5.00 |
42 |
0.12 |
0.068 |
0.005 |
36.9 |
2.60 |
111.0 |
35.0 |
55.0 |
22 |
26 |
C |
1" |
I5X42C |
I5X50C |
5.00 |
51 |
0.10 |
0.077 |
0.004 |
32.5 |
0.13 |
105.3 |
21.5 |
43.8 |
16/18 |
16/18 |
C |
1/2' |
I5X50C |
I5X68C |
5.00 |
68 |
0.14 |
0.058 |
0.006 |
43.1 |
0.03 |
105.3 |
21.5 |
43.8 |
16/18 |
16/18 |
C |
1/2' |
I5X68C |
I5X75C |
5.00 |
75 |
0.15 |
0.053 |
0.006 |
47.2 |
0.15 |
168.2 |
21.5 |
106.7 |
16/18 |
18 |
C |
1/2' |
I5X75C |
I5X75C |
5.00 |
75 |
0.15 |
0.053 |
0.006 |
47.2 |
0.15 |
168.2 |
21.5 |
106.7 |
16/18 |
18 |
C |
1/2' |
I5X75C |
I5X100C |
5.00 |
100 |
0.18 |
0.045 |
0.007 |
55.6 |
0.03 |
136.0 |
34.0 |
62.0 |
16 |
16/18 |
C |
1/2' |
I5X100C |
I5X110C |
5.00 |
110 |
0.16 |
0.050 |
0.007 |
50.0 |
0.10 |
123.5 |
21.5 |
62.0 |
16/18 |
16/18 |
C |
1/2' |
I5X110C |
I5.3X65C |
5.30 |
65 |
0.14 |
0.053 |
0.006 |
50.0 |
0.15 |
108.5 |
6.5 |
62.0 |
16 |
16/18 |
C |
1/2' |
I5.3X65C |
I6X20C |
6.00 |
20 |
0.06 |
0.110 |
0.003 |
27.3 |
0.06 |
123.5 |
21.5 |
62.0 |
16/18 |
16/18 |
C |
1/2' |
I6X20C |
I6X20C |
6.00 |
20 |
0.06 |
0.110 |
0.003 |
27.3 |
0.06 |
123.5 |
21.5 |
62.0 |
16/18 |
16/18 |
C |
1/2' |
I6X20C |
I6X35C |
6.00 |
35 |
0.07 |
0.096 |
0.003 |
31.3 |
0.16 |
123.5 |
21.5 |
62.0 |
16/18 |
16/18 |
C |
1/2' |
I6X35C |
型号 |
倍数 |
工作距 |
景深 |
数值孔径 |
分辨率 |
孔径F# |
畸变% |
镜身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
最大接收器 |
非同轴光型号/外形图下载 |
I6X65C |
6.00 |
65 |
0.11 |
0.060 |
0.006 |
50.0 |
0.20 |
90.3 |
6.5 |
43.8 |
16 |
16/18 |
C |
1/2' |
I6X65C |
I7.5X56C |
7.50 |
56 |
0.08 |
0.065 |
0.005 |
57.7 |
0.02 |
117.8 |
34.0 |
43.8 |
16 |
16/18 |
C |
1/2' |
I7.5X56C |
I7.5X60C |
7.50 |
60 |
0.08 |
0.065 |
0.005 |
57.7 |
0.02 |
123.5 |
21.5 |
62.0 |
16/18 |
16/18 |
C |
1/2' |
I7.5X60C |
I8X20C |
8.00 |
20 |
0.05 |
0.110 |
0.003 |
36.4 |
0.20 |
123.5 |
21.5 |
62.0 |
16/18 |
16/18 |
C |
1/2' |
I8X20C |
I8X36C |
8.00 |
36 |
0.05 |
0.110 |
0.003 |
36.4 |
0.20 |
172.1 |
34.0 |
98.1 |
16 |
18 |
C |
1/2' |
I8X36C |
I8X45C |
8.00 |
45 |
0.06 |
0.090 |
0.004 |
44.4 |
0.02 |
113.6 |
39.1 |
34.5 |
17 |
16/18 |
C |
1/2' |
I8X45C |
I8X56C |
8.00 |
56 |
0.07 |
0.070 |
0.005 |
57.1 |
0.02 |
117.8 |
34.0 |
43.8 |
16 |
16/18 |
C |
1/2' |
I8X56C |
型号 |
倍数 |
工作距 |
景深 |
数值孔径 |
分辨率 |
孔径F# |
畸变% |
镜身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
最大接收器 |
非同轴光型号/外形图下载 |
|
