远心镜头     准远心同镜头
准远心按头部外径分为32mm,28mm,26mm,22mm,20mm,18mm,16mm等,
准远心镜头不提供同轴光的规格。
高清准远心32 高清准远心28 高清准远心26 高清准远心22 高清远心18
敬请期待  敬请期待  敬请期待

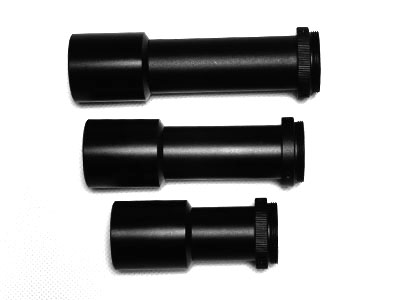

高清准远心镜头，外径28，视场最大36，适用相机1/4'至1'
1.镜头相比普通准远心有更大的相对孔径和分辨率，支持更大的芯片相机，最大可以支持到1寸芯片
2.镜头头部外径28，后部外径为22.准远心设计,C标准接口,适用相机芯片尺寸:1',2/3',1/1.8',1/2',1/3',1/4',1/6'，参照常用相机芯片尺寸对照表,芯片对角线对应镜头规格表中像面直径，只要芯片对角数据小于像面直径的都可以用。

产品列表说明：
产品按放大率从小到大排列，相同放大率按工作距从小到大排列。

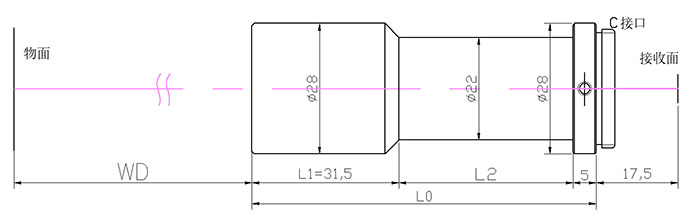

外形图在最后一列，图中WD表示工作距。型号中JZ表示焦中高清系列，接着是放大率，X后面是工作距，
TN表示准远心，准远心没有对应的同轴光型号镜头，
最后面加数字表示头部外径或安装外径。最右边是图纸链接。
镜头中所列数值孔径是镜头最佳的孔径，和对应F数以及景深，分辨率。可以按用户要求定制其它的数值孔径和对应的景深。一旦数值孔径定了，就会有对应的分辨率和景深。



型号 倍数 工作距 数值孔径 分辨率 景深 孔径F# 畸变% 远心度° 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载
JZ0.3X90TN28 0.30 90 0.02 0.015 5.987 6.7 2.70 5.78 47.8 31.5 11.3 28 22 C 11 JZ0.3X90TN28
JZ0.3X112TN28 0.30 112 0.02 0.018 7.110 8.0 2.29 5.72 47.8 31.5 11.3 28 22 C 11 JZ0.3X112TN28
JZ0.3X350TN 0.30 350 0.01 0.029 11.609 13.1 0.55 1.79 65.0 31.5 28.5 28 22 C 8 JZ0.3X350TN28
JZ0.4X67TN28 0.40 67 0.04 0.008 2.369 4.7 1.67 5.48 53.7 31.5 17.2 28 22 C 11 JZ0.4X67TN28
JZ0.4X87TN28 0.40 87 0.02 0.015 4.407 8.8 1.62 4.44 53.7 31.5 17.2 28 22 C 11 JZ0.4X87TN28
JZ0.4X169TN28 0.40 169 0.02 0.019 5.672 11.3 1.01 2.59 61.5 31.5 25.0 28 22 C 11 JZ0.4X169TN28
JZ0.4X250TN 0.40 250 0.01 0.022 6.675 13.4 0.54 1.73 65.0 31.5 28.5 28 22 C 8 JZ0.4X250TN28
JZ0.4X300TN 0.40 300 0.01 0.026 7.690 15.4 0.41 1.54 71.5 31.5 35.0 28 22 C 8 JZ0.4X300TN28
JZ0.4X306TN 0.40 306 0.01 0.026 7.821 15.6 0.73 1.49 61.5 31.5 25.0 28 22 C 8 JZ0.4X306TN28
JZ0.5X50TN28 0.50 50 0.04 0.009 2.040 6.4 0.77 1.84 65.0 31.5 28.5 28 22 C 11 JZ0.5X50TN28
JZ0.5X51TN28 0.50 51 0.05 0.007 1.631 5.1 0.78 1.80 65.0 31.5 28.5 28 22 C 11 JZ0.5X51TN28
JZ0.5X72TN28 0.50 72 0.03 0.010 2.303 7.2 1.06 2.97 61.5 31.5 25.0 28 22 C 11 JZ0.5X72TN28
JZ0.5X91TN28 0.50 91 0.04 0.008 1.896 5.9 1.11 3.16 61.5 31.5 25.0 28 22 C 11 JZ0.5X91TN28
JZ0.5X150TN28 0.50 150 0.02 0.014 3.249 10.2 0.80 2.42 65.0 31.5 28.5 28 22 C 11 JZ0.5X150TN28
JZ0.5X233TN 0.50 233 0.02 0.021 5.056 15.8 0.77 2.02 71.5 31.5 35.0 28 22 C 11 JZ0.5X233TN28
JZ0.5X245TN 0.50 245 0.02 0.022 5.258 16.4 0.70 1.95 74.0 31.5 37.5 28 22 C 11 JZ0.5X245TN28
JZ0.5X285TN28 0.50 285 0.02 0.021 4.947 15.5 0.68 1.90 74.0 31.5 37.5 28 22 C 11 JZ0.5X285TN28
JZ0.5X334TN 0.50 334 0.01 0.022 5.361 16.8 0.80 1.52 71.5 31.5 35.0 28 22 C 11 JZ0.5X334TN28
JZ0.6X36TN28 0.60 36 0.05 0.007 1.335 6.0 0.52 1.13 71.5 31.5 35.0 28 22 C 11 JZ0.6X36TN28
JZ0.6X57TN28 0.60 57 0.04 0.009 1.824 8.2 0.82 3.49 61.5 31.5 25.0 28 22 C 11 JZ0.6X57TN28
JZ0.6X77TN28 0.60 77 0.05 0.007 1.357 6.1 1.73 4.32 65.0 31.5 28.5 28 22 C 16 JZ0.6X77TN28
JZ0.6X127TN28 0.60 127 0.03 0.010 2.063 9.3 0.54 2.23 71.5 31.5 35.0 28 22 C 11 JZ0.6X127TN28
JZ0.6X263TN28 0.60 263 0.02 0.019 3.776 17.0 0.38 1.69 91.0 31.5 54.5 28 22 C 11 JZ0.6X263TN28
JZ0.7X48TN28 0.70 48 0.04 0.009 1.490 9.1 0.72 5.17 53.7 31.5 17.2 28 22 C 11 JZ0.7X48TN28
JZ0.7X64TN 0.70 64 0.04 0.008 1.389 8.5 0.63 4.04 61.5 31.5 25.0 28 22 C 11 JZ0.7X64TN28
JZ0.7X66TN28 0.70 66 0.05 0.007 1.233 7.6 1.36 4.97 65.0 31.5 28.5 28 22 C 16 JZ0.7X66TN28
JZ0.75X111TN28 0.75 111 0.03 0.010 1.643 11.5 0.36 2.20 79.0 31.5 42.5 28 22 C 11 JZ0.8X111TN28
JZ0.8X41TN28 0.80 41 0.04 0.008 1.245 10.0 0.37 0.64 83.5 31.5 47.0 28 22 C 11 JZ0.8X41TN28
JZ0.8X43TN28 0.80 43 0.04 0.008 1.218 9.7 1.21 7.64 53.7 31.5 17.2 28 22 C 16 JZ0.8X43TN28
JZ0.8X58TN28 0.80 58 0.05 0.007 1.038 8.3 1.10 5.43 65.0 31.5 28.5 28 22 C 16 JZ0.8X58TN28
JZ0.8X64TN 0.80 64 0.05 0.007 1.030 8.2 0.41 0.56 83.5 31.5 47.0 28 22 C 11 JZ0.8X64TN28
JZ0.8X110TN28 0.80 110 0.03 0.010 1.530 12.2 0.35 2.17 79.7 31.5 43.2 28 22 C 11 JZ0.8X110TN28
JZ0.8X177TN28 0.80 177 0.03 0.010 1.561 12.5 1.34 2.00 83.5 31.5 47.0 28 22 C 16 JZ0.8X177TN28
JZ0.8X189TN28 0.80 189 0.03 0.012 1.749 14.0 0.82 1.14 79.0 31.5 42.5 28 22 C 11 JZ0.8X189TN28
型号 倍数 工作距 数值孔径 分辨率 景深 孔径F# 畸变% 远心度° 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载
JZ0.8X211TN28 0.80 211 0.02 0.015 2.173 17.4 0.78 2.10 96.0 31.5 59.5 28 22 C 16 JZ0.8X211TN28
JZ0.83X151TN28 0.83 151 0.03 0.010 1.402 12.1 1.38 1.19 71.5 31.5 35.0 28 22 C 11 JZ0.83X151TN28
JZ0.9X39TN28 0.90 39 0.04 0.008 1.028 10.4 1.02 6.97 57.5 31.5 21.0 28 22 C 16 JZ0.9X39TN28
JZ0.9X53TN28 0.90 53 0.06 0.006 0.799 8.1 0.90 4.51 71.5 31.5 35.0 28 22 C 16 JZ0.9X53TN28
JZ0.92X141TN28 0.92 141 0.04 0.009 1.133 12.0 1.30 1.27 74.0 31.5 37.5 28 22 C 11 JZ0.92X141TN28
JZ1X30TN28 1.00 30 0.05 0.006 0.772 9.7 0.23 0.77 91.0 31.5 54.5 28 22 C 11 JZ1X30TN28
JZ1X36TN28 1.00 36 0.05 0.007 0.877 11.0 0.87 7.15 57.5 31.5 21.0 28 22 C 16 JZ1X36TN28
JZ1X49TN 1.00 49 0.05 0.007 0.840 10.5 0.36 3.36 71.5 31.5 35.0 28 22 C 11 JZ1X49TN28
JZ1X50TN28 1.00 50 0.06 0.006 0.679 8.5 0.57 1.90 87.5 31.5 51.0 28 22 C 16 JZ1X50TN28
JZ1X95TN28 1.00 95 0.03 0.010 1.150 14.4 0.23 1.91 91.0 31.5 54.5 28 22 C 11 JZ1X95TN28
JZ1X162TN28 1.00 162 0.04 0.009 1.129 14.1 0.75 0.76 83.5 31.5 47.0 28 22 C 11 JZ1X162TN28
JZ1X170TN28 1.00 170 0.03 0.011 1.273 15.9 0.41 1.18 96.0 31.5 59.5 28 22 C 11 JZ1X170TN28
JZ1.08X164TN28 1.08 164 0.03 0.010 1.083 15.8 0.86 0.74 79.0 31.5 42.5 28 22 C 11 JZ1.08X164TN28
JZ1.2X43TN28 1.20 43 0.06 0.006 0.548 9.9 0.39 1.71 96.0 31.5 59.5 28 22 C 16 JZ1.2X43TN28
JZ1.2X87TN28 1.20 87 0.04 0.009 0.852 15.3 0.14 2.19 100.0 31.5 63.5 28 22 C 11 JZ1.2X87TN28
JZ1.2X141TN28 1.20 141 0.04 0.008 0.784 14.1 0.45 0.79 96.0 31.5 59.5 28 22 C 11 JZ1.2X141TN28
JZ1.33X150TN28 1.33 150 0.04 0.009 0.782 17.3 1.02 1.15 96.0 31.5 59.5 28 22 C 16 JZ1.33X150TN28
JZ1.5X35TN 1.50 35 0.05 0.006 0.516 14.5 0.11 0.70 113.5 31.5 77.0 28 22 C 11 JZ1.5X35TN28
JZ1.5X77TN28 1.50 77 0.04 0.008 0.628 17.7 0.10 1.85 117.0 31.5 80.5 28 22 C 11 JZ1.5X77TN28
JZ1.6X160TN28 1.60 160 0.04 0.009 0.640 20.5 0.91 0.79 96.0 31.5 59.5 28 22 C 16 JZ1.6X160TN28
型号 倍数 工作距 数值孔径 分辨率 景深 孔径F# 畸变% 远心度° 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载
